High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

Name: High Abrasion High Cr Cast Iron Combined Selffastened Mill Linings For Coal Mills
Brand: Chen's Liner
Price: 1 USD

Buy cheap High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills product

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF114

MOQ : 10 Ton/Tons

Price : Discuss in email

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg;

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 5000 Ton/Tons per Year

Port : Shanghai

Certification : ISO 9001:2008

Product Name : Mill Liners

Application : Coal Mill

Hardness : ≥HRC52

Material : High Cr

Output Increased : About 5%

Surface Finish Decreased : Good surface after shot blasting

Inspection : UT&MT

Contact Now

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings

Specification

1.Material:High Cr Cast Iron

2.Hardness:≥HRC52

3.Impact Value:More than AK49J

4.Application:Mining Industry

5.MOQ:10tons

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

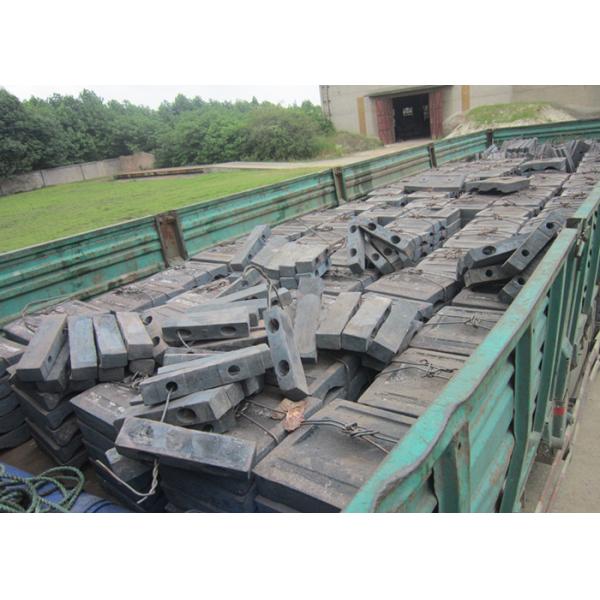

Product Photo

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

Technical Parameters

Item	High Cr White Iron	High Cr Alloy Steel	High Mn Steel	Ni-hard Cast Iron
C	2.4-3.2	1.1-2.2	0.9-1.3	2.4-3.6
Si	0.6-1.2	0.6-1.2	≤0.8	≤0.8
Mn	0.5-1.0	0.5-1.0	11.0-18.0	≤2.0
Cr	12.0-30.0	11.0-30.0	1.5-2.5	1.5-10
S	≤0.04	≤0.04	≤0.04	≤0.15
P	≤0.06	≤0.06	≤0.06	≤0.15
Mo	0.1-3.0	0.1-3.0	≤1.0	≤0.1
Cu	0.1-1.0	0.1-1.0	-	-
Ni	0-0.3	0-0.3	-	3.3-10
Re	-	-	-	-
Equivalent Specification	GB/T8263-1999 AS2027 Cr27 AS2027 CrMo 15/3 AS2027 CrMo 20/2/1 ASTM A532 Class Ⅲ Type A 25%Cr ASTM A532 Class Ⅱ Type B 15%Cr-Mo BS 4844 3E DIN1695 NFA32401		GB/T5680-1998 DL/T 681-1999 JIS G 5153-1999 ASTM A128 DIN GX120Mn12 AFNORZ120Mn12	GB/T8263-1999 AS2027/Ni-Cr1-550 AS2027/Ni-Cr2-500 AS2027/Ni-Cr4-500 AS2027/Ni-Cr4-600 AS2027/Ni-Cr4-630 ASTM A532 1-A,B,C,D ASTM A532 2-A,B,C,D,E ASTM A532 3-A
Material Type	Martensite Matrix		Austenitic Mn Steel	-
Hardness	HRC≥56		HB≤300	HRC≥56
Impact Value	AK≥4J		AK≥80J	-

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

Inspection Facilities

Spectrometer Portable Hardness Tester

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

UT Test Electronic Metallographic Microscope

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

Honor

High Abrasion High Cr Cast Iron Combined Self-fastened Mill Linings For Coal Mills

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
